Bolt

Bolt

Bolt Plus 24

Bolt Pro 36

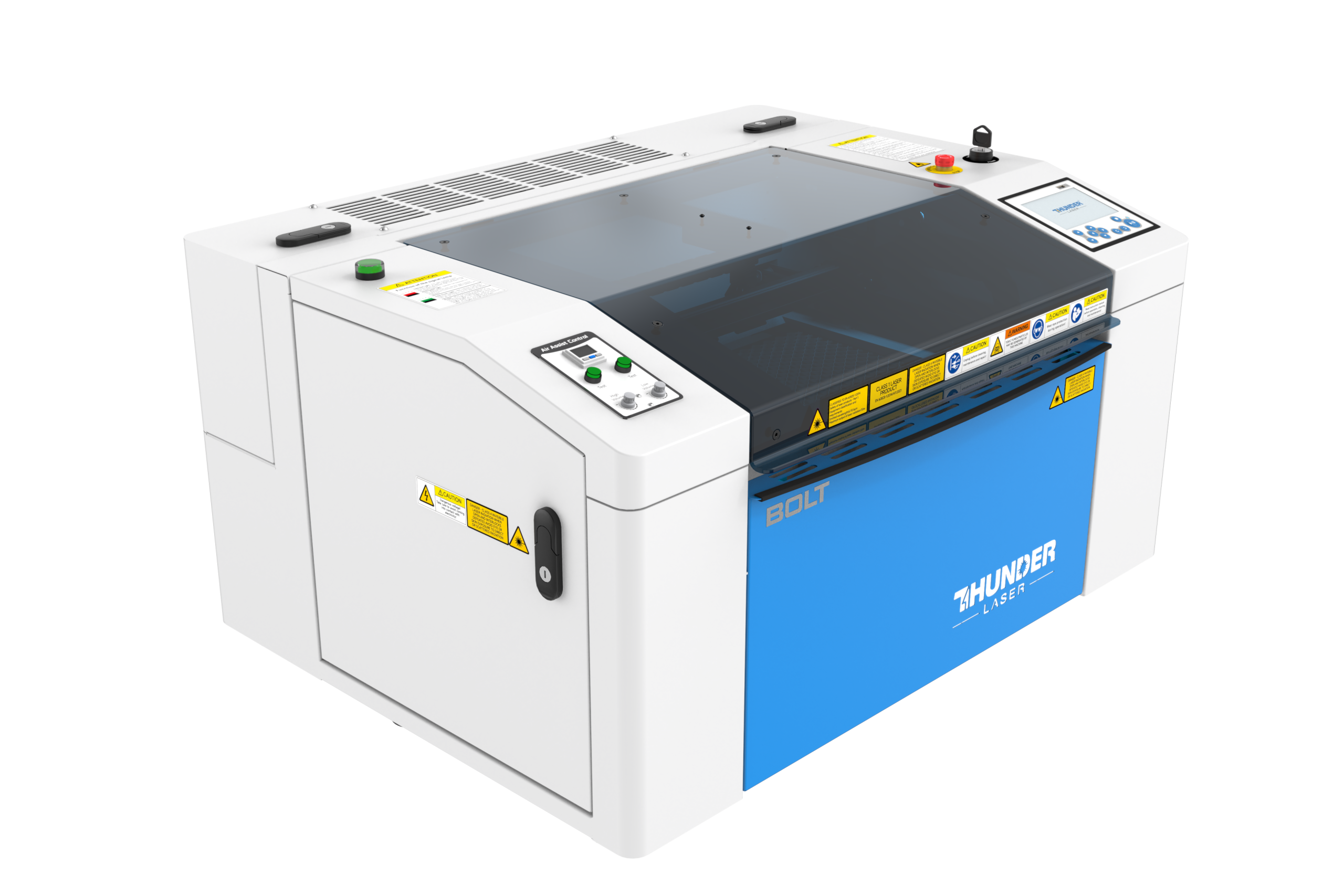

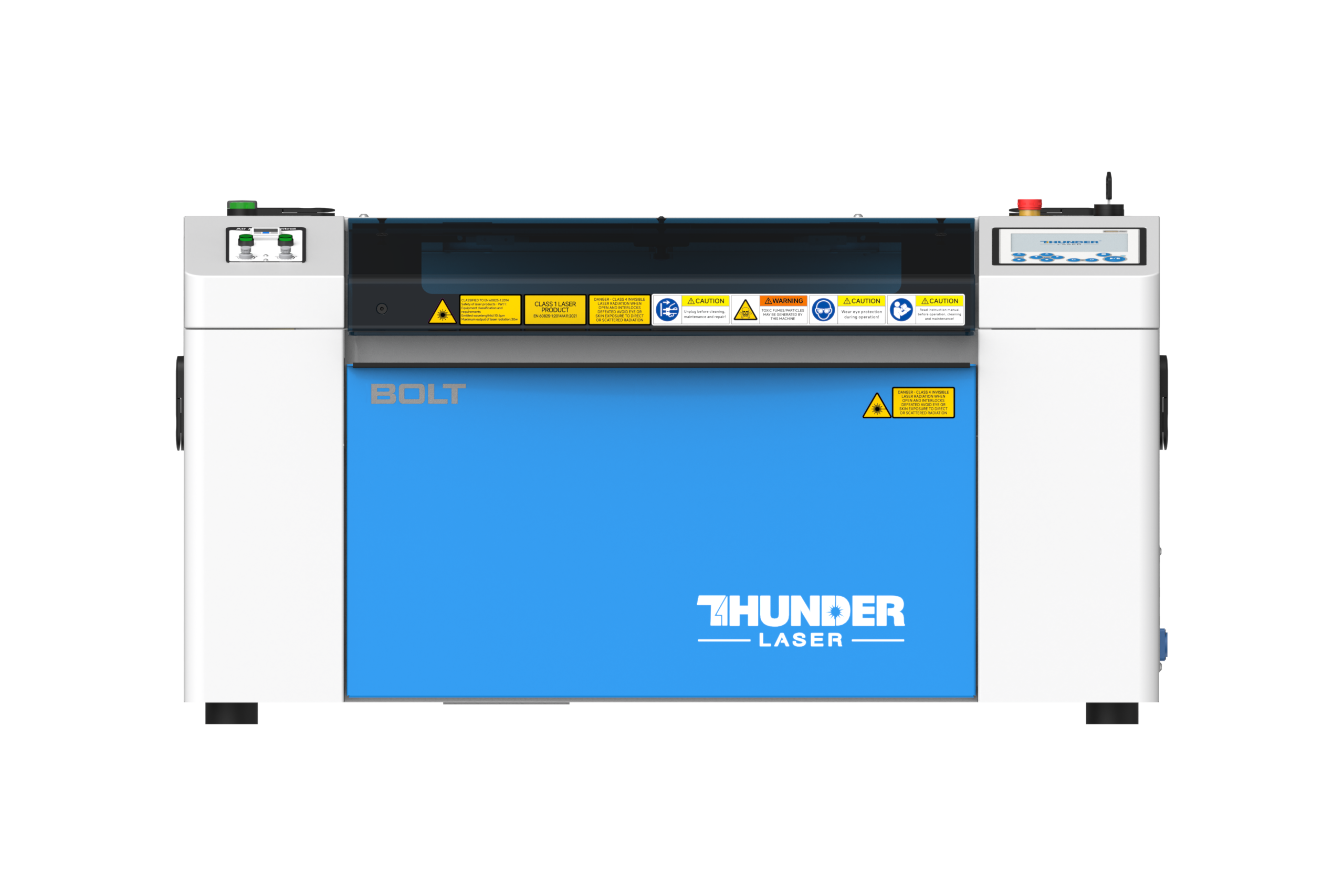

Bolt

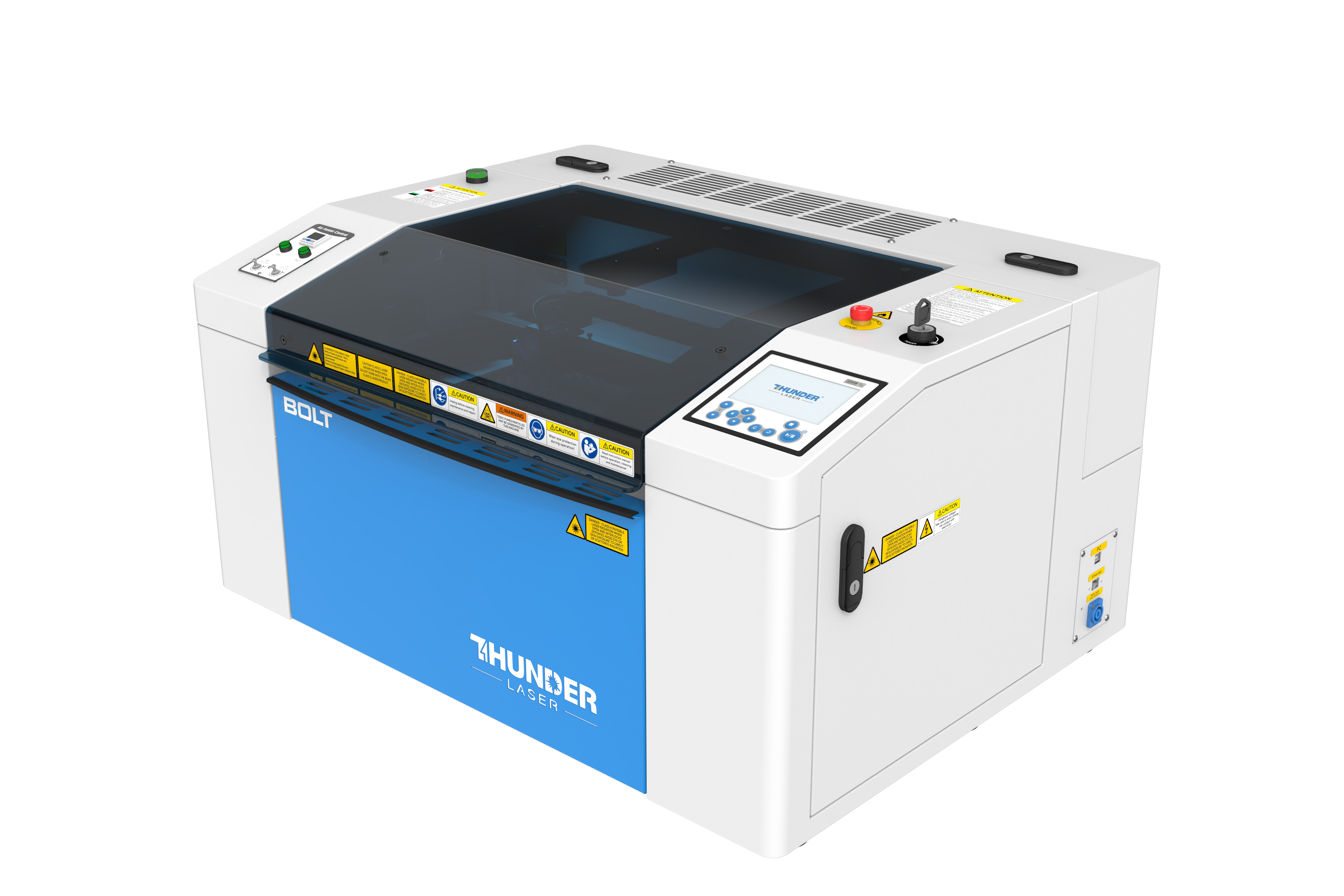

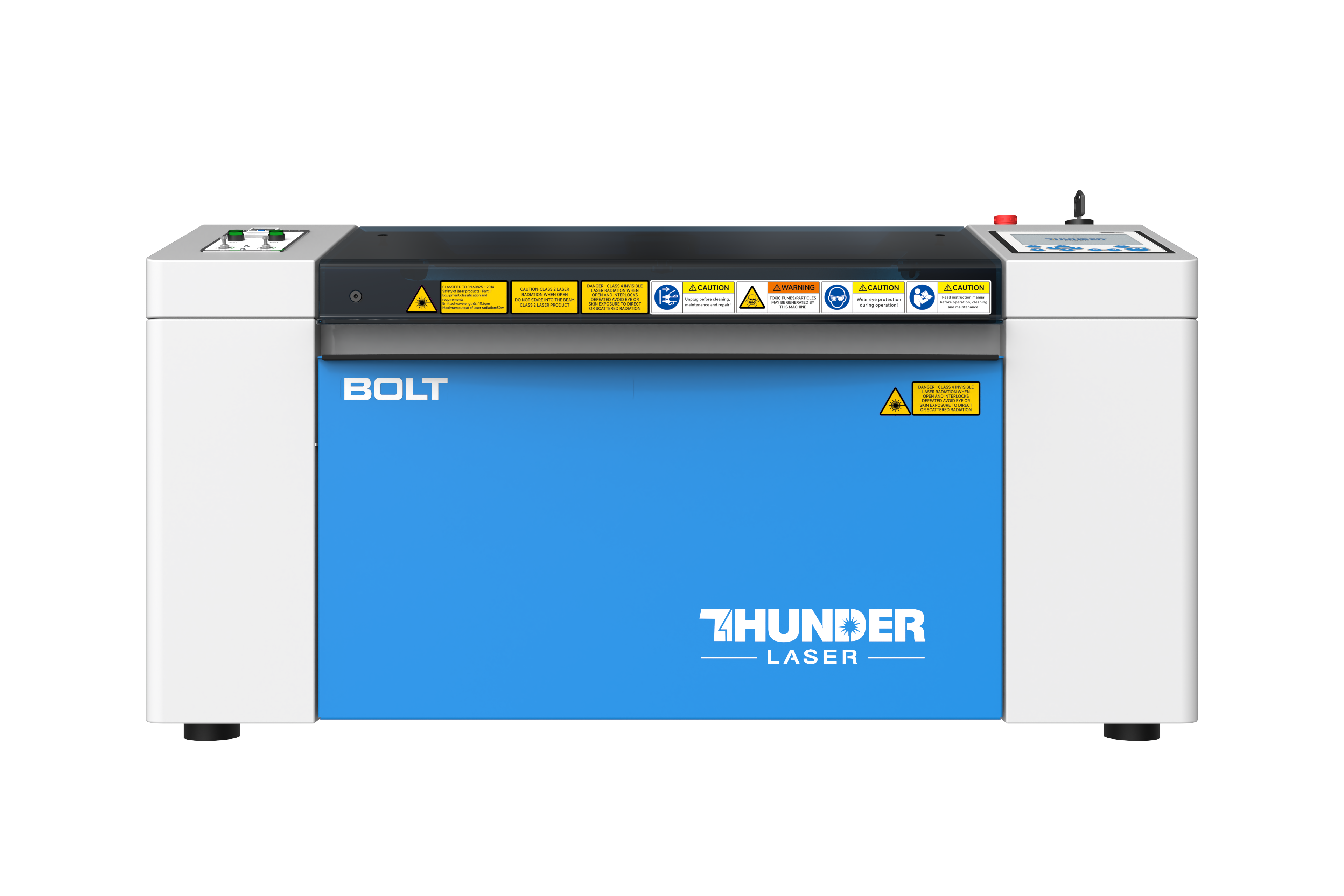

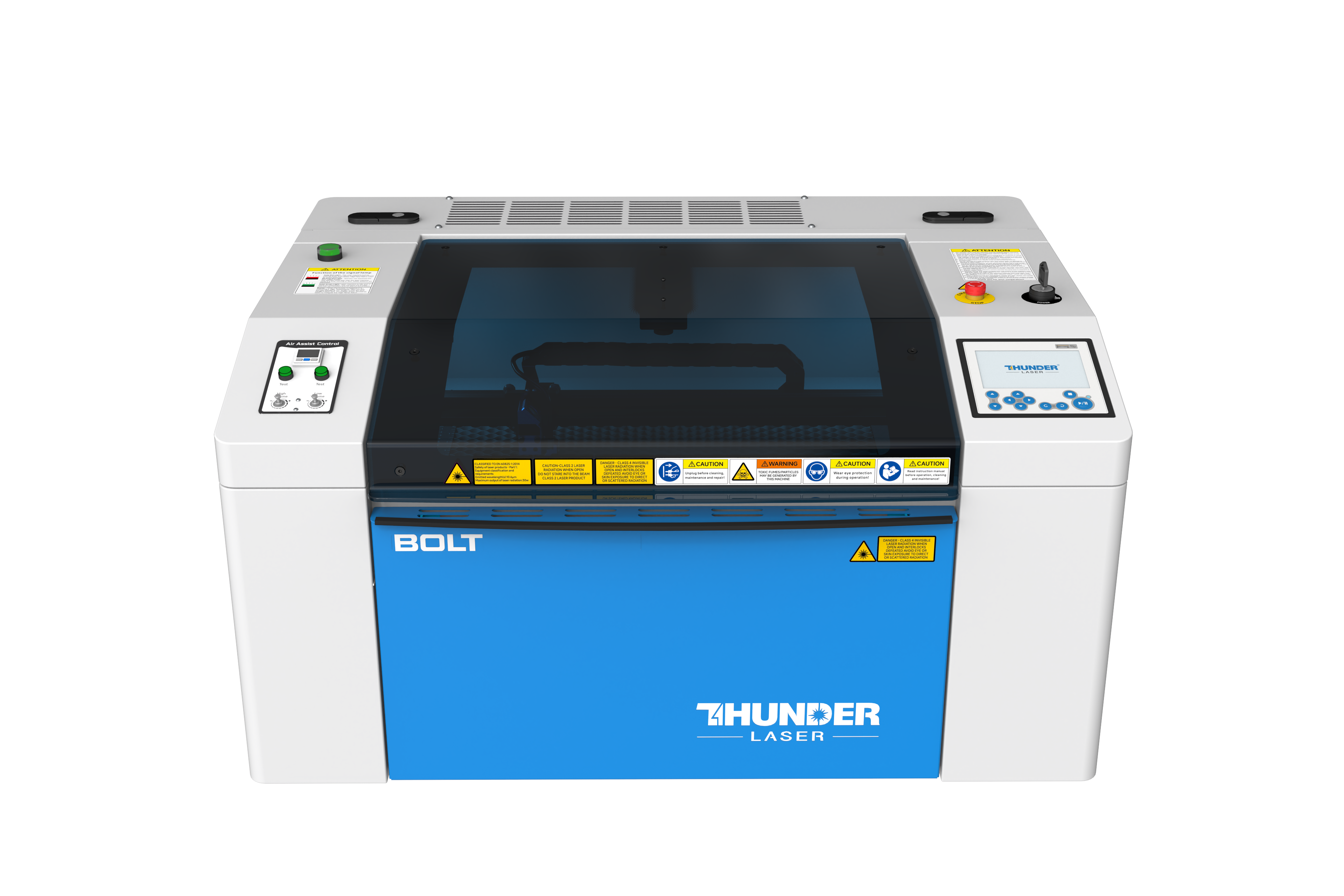

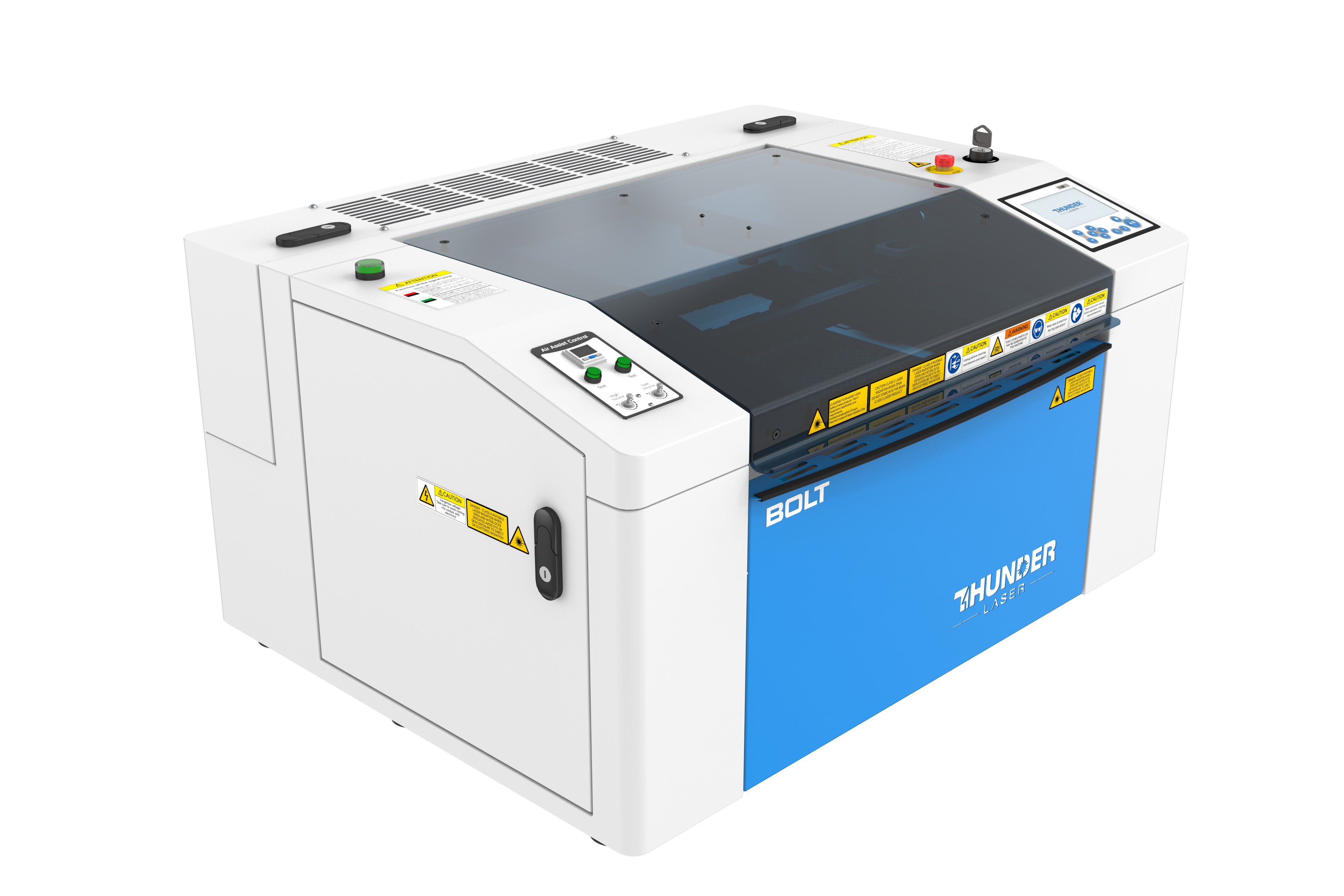

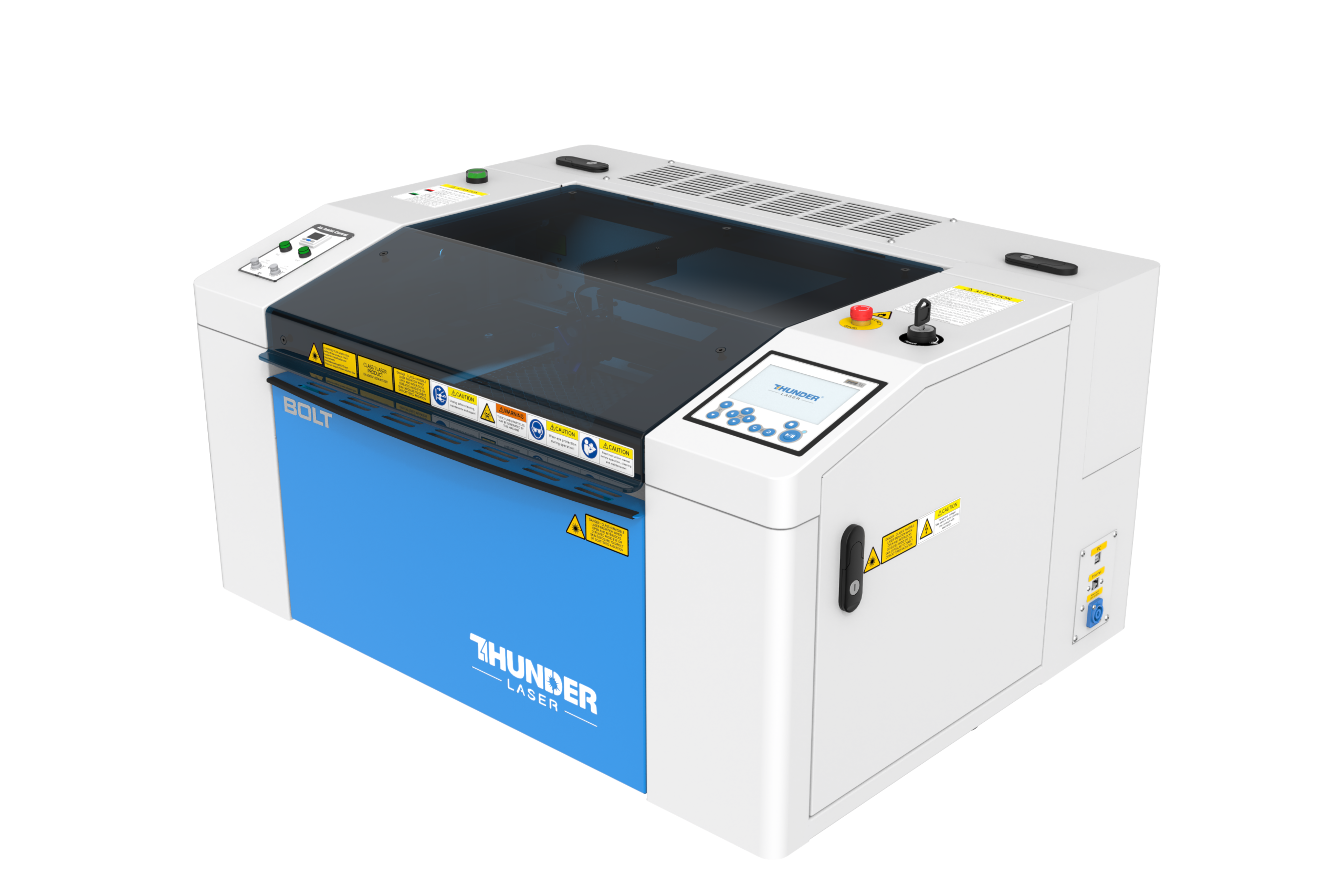

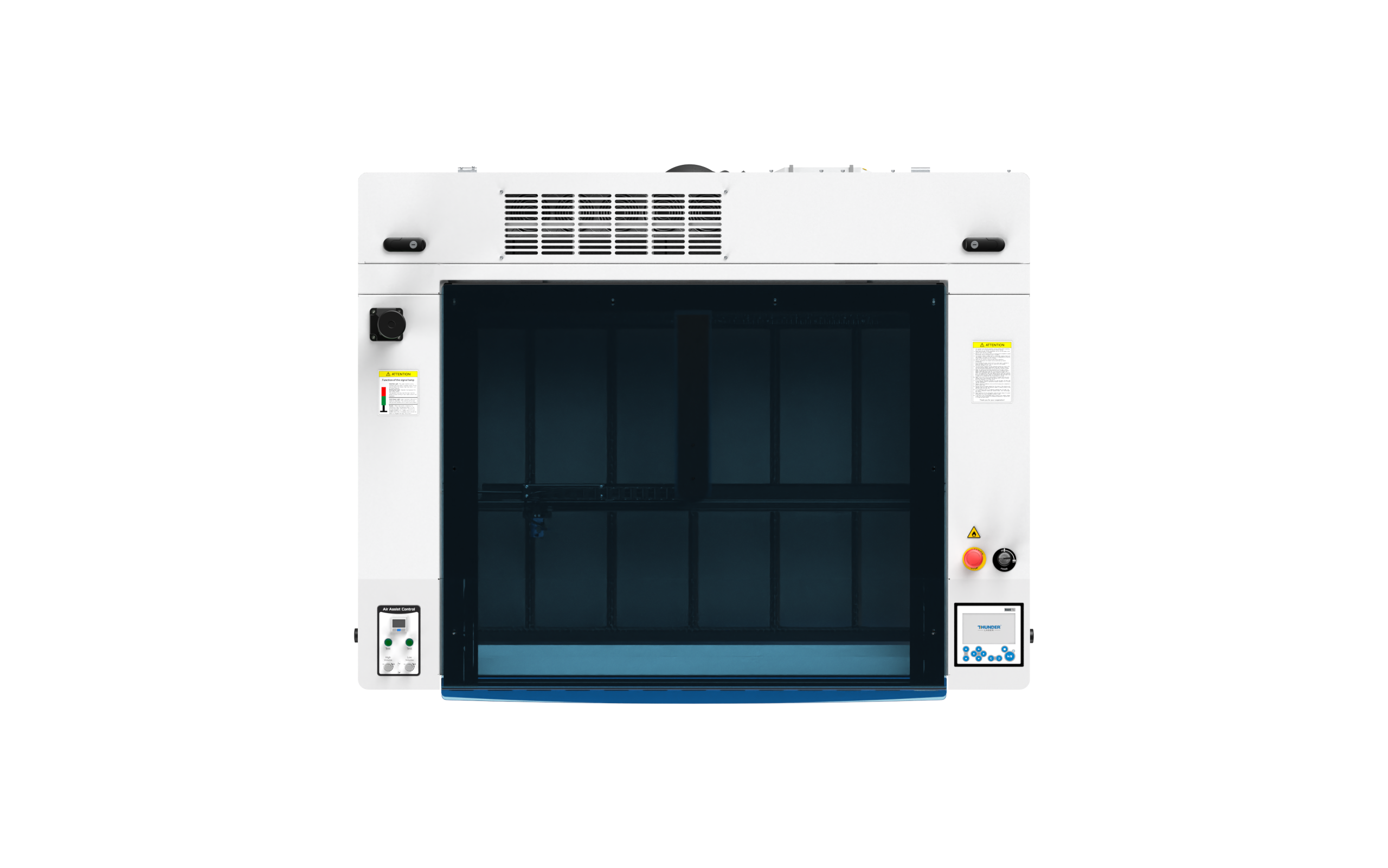

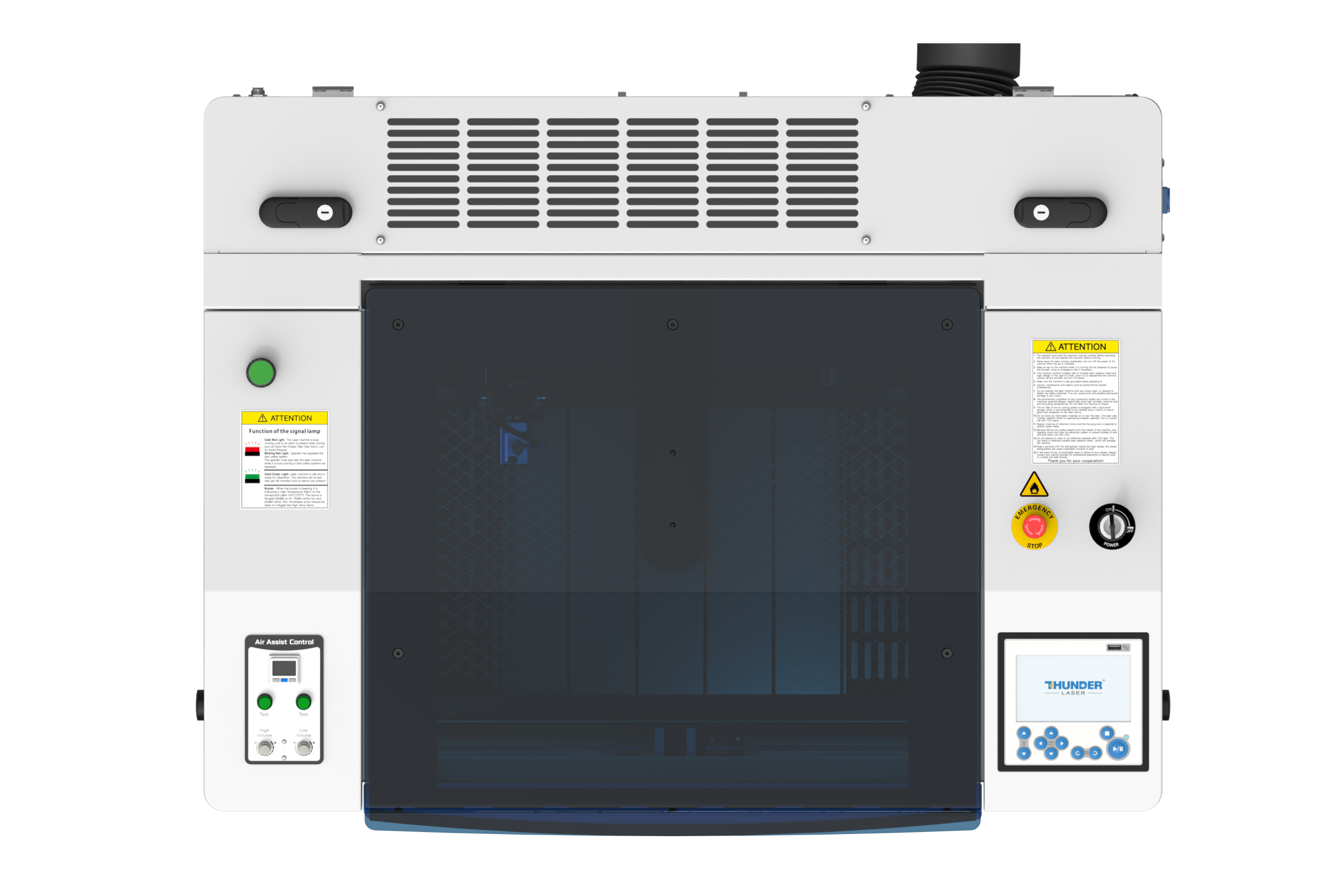

Thunder Bolt is a compact desktop CO₂ engraver built for speed, precision, and ease of use. Equipped with a durable RF laser tube, it delivers ultra-fast engraving at 1,500 mm/s, 3G acceleration, and exceptional beam quality. The dual air assist™, 5MP camera, touchscreen controls, and rotary tray make setup easy—even for curved items. Whether you’re crafting with wood, acrylic, or leather, Bolt brings pro-level results in a space-saving design. Perfect for makers, small businesses, and anyone ready to create more with less.

What's Included?

Product Features

Fast and Precise

Ready for Real Work

Built-In Productivity

Industrial-Grade

UNLOCK SPECTACULAR CREATIVITY WITH LASER

Engraving Acrylic

Engraving Coconut Fiber

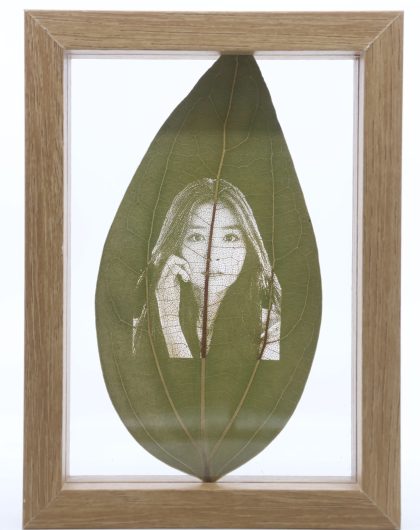

Engraving Leaves

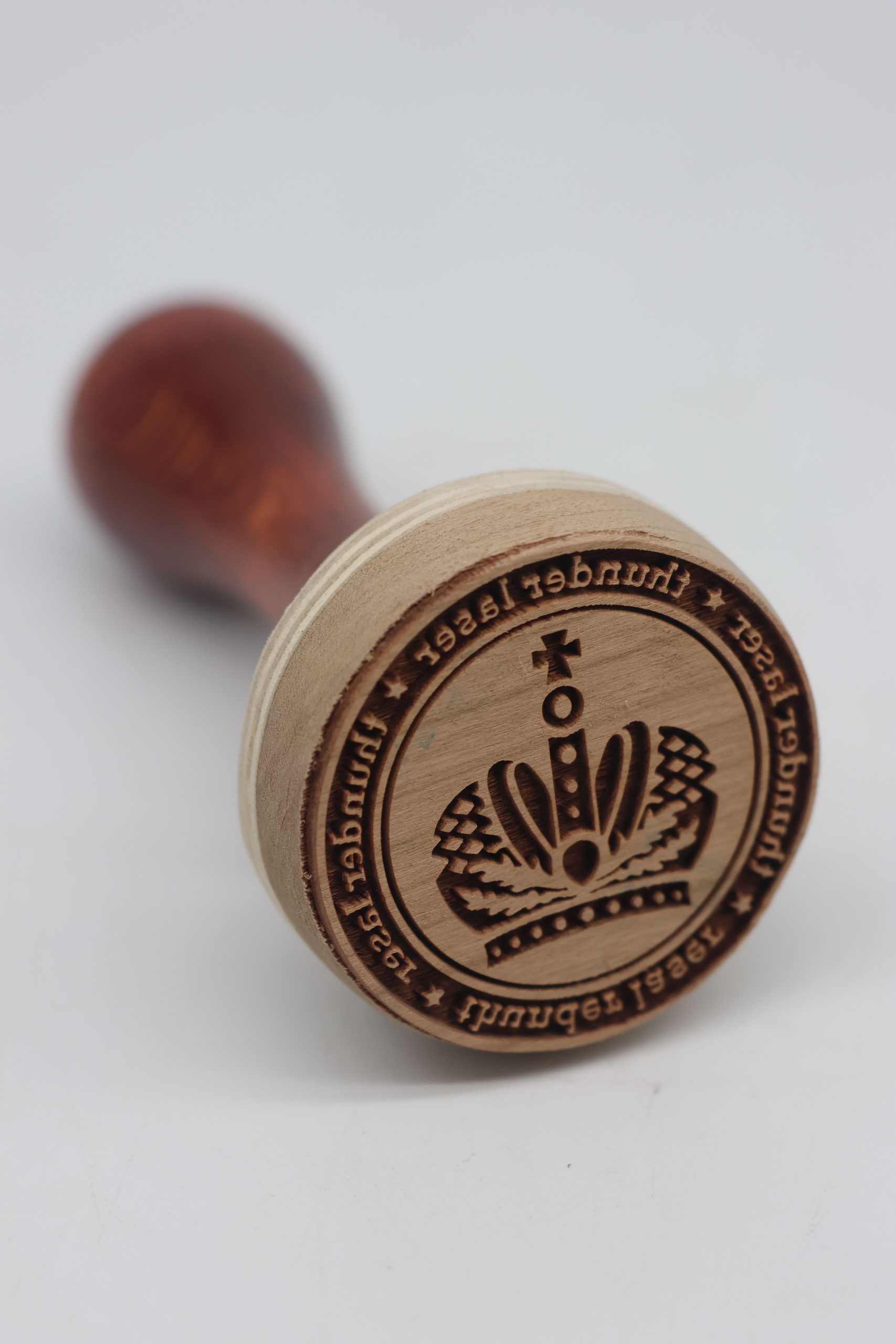

Engraving Wood Stamp

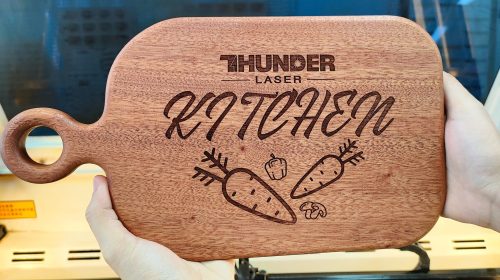

Engraving Wood

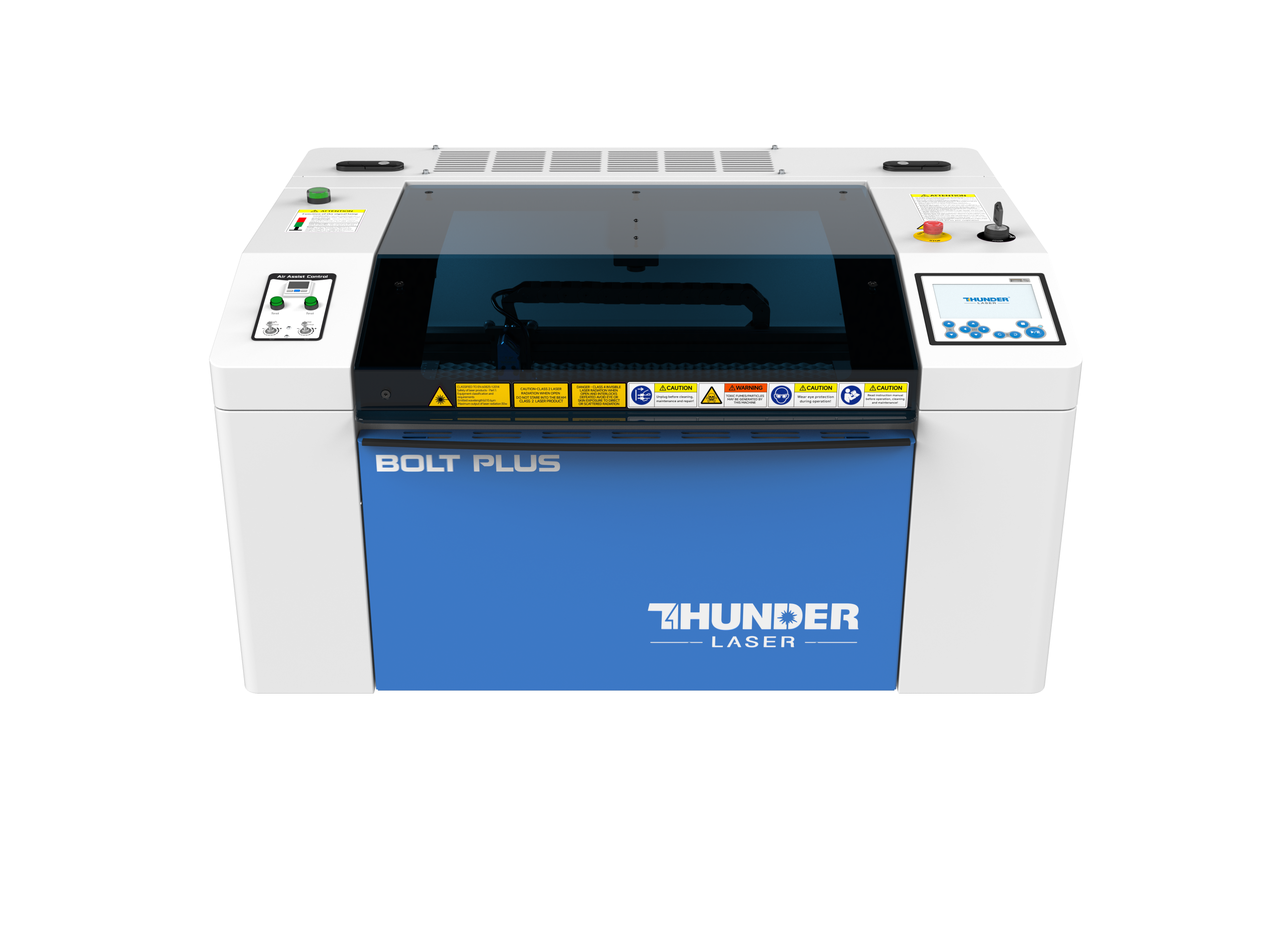

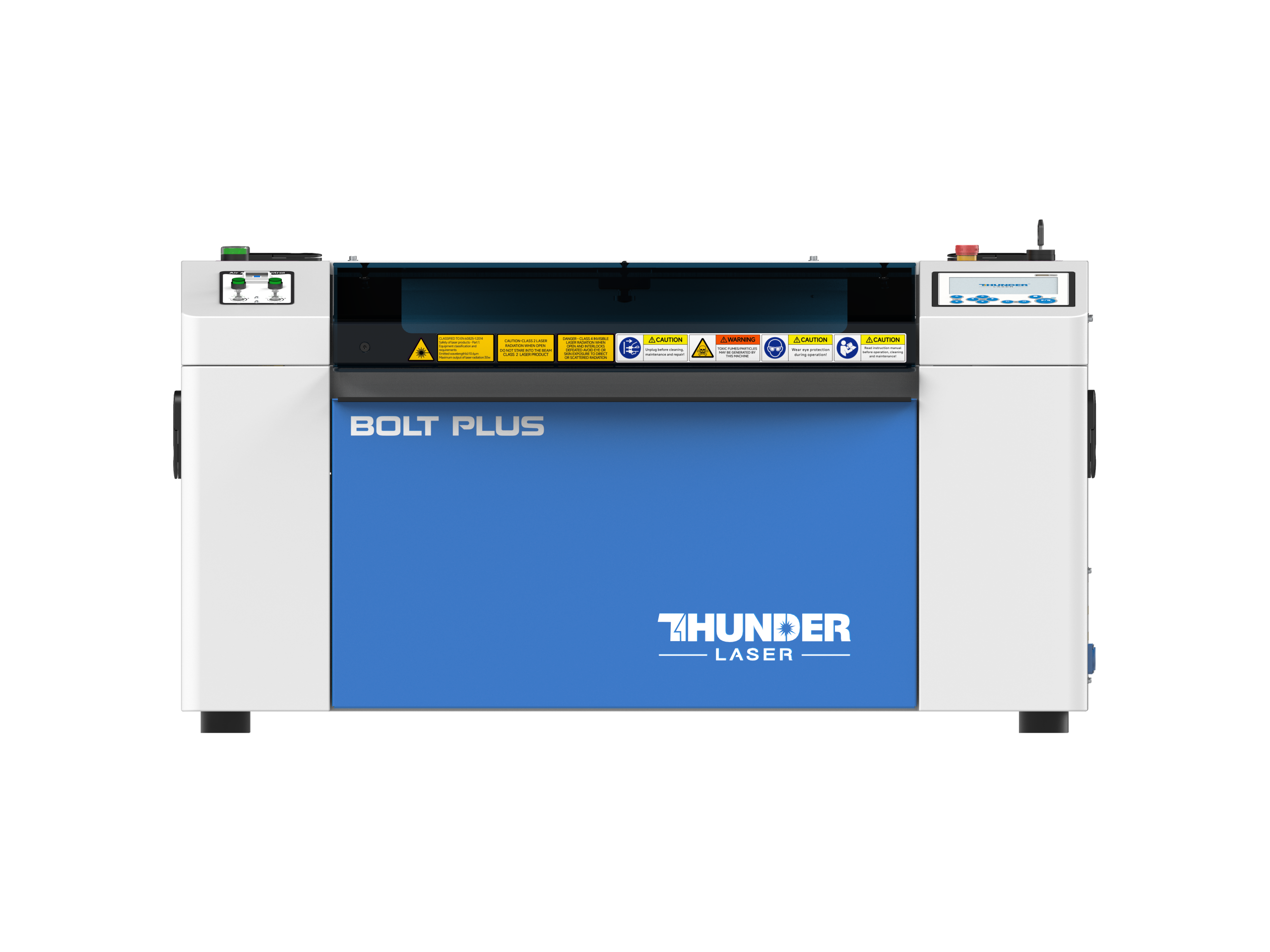

Bolt Plus 24

Bolt Plus 24

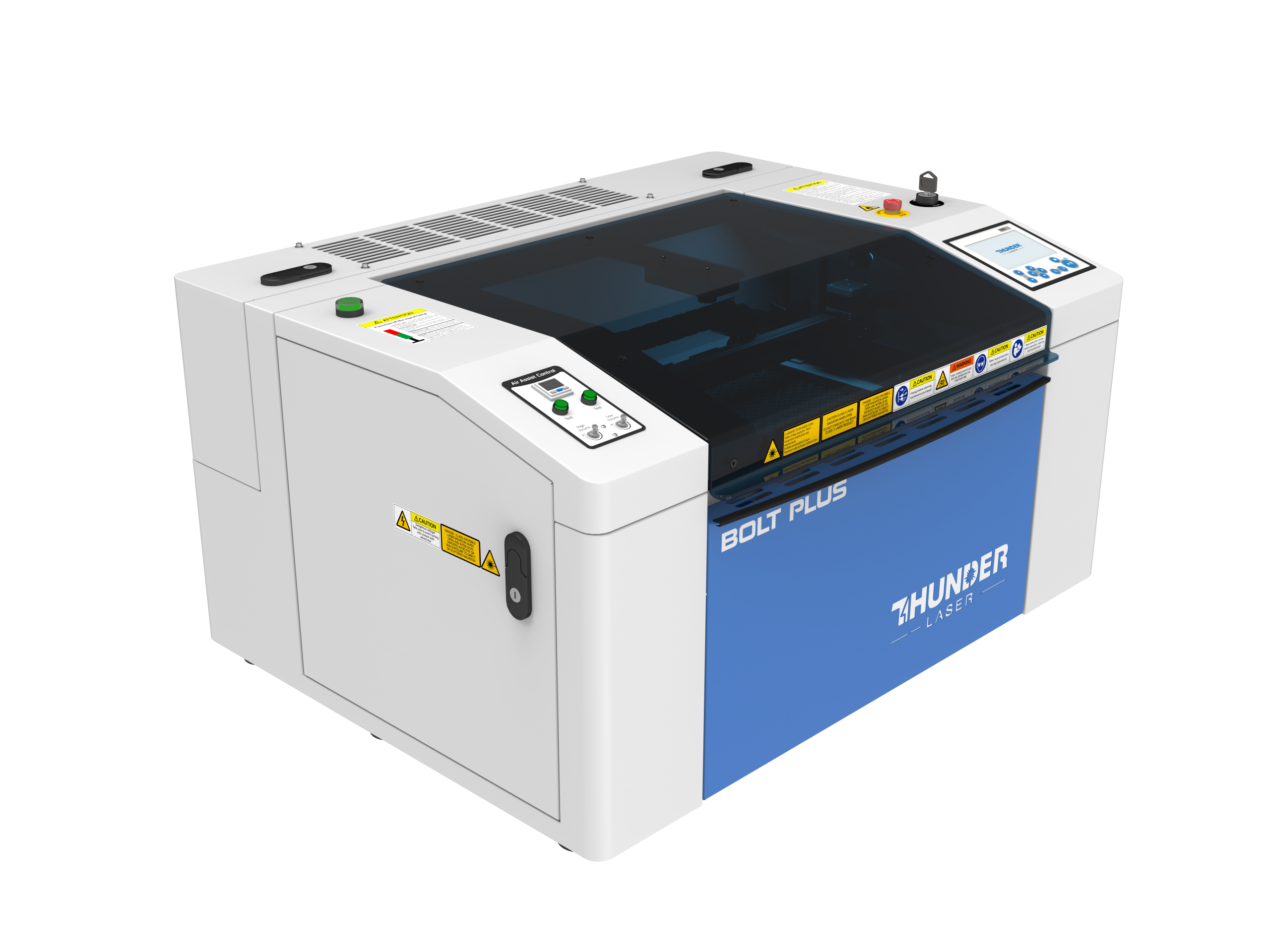

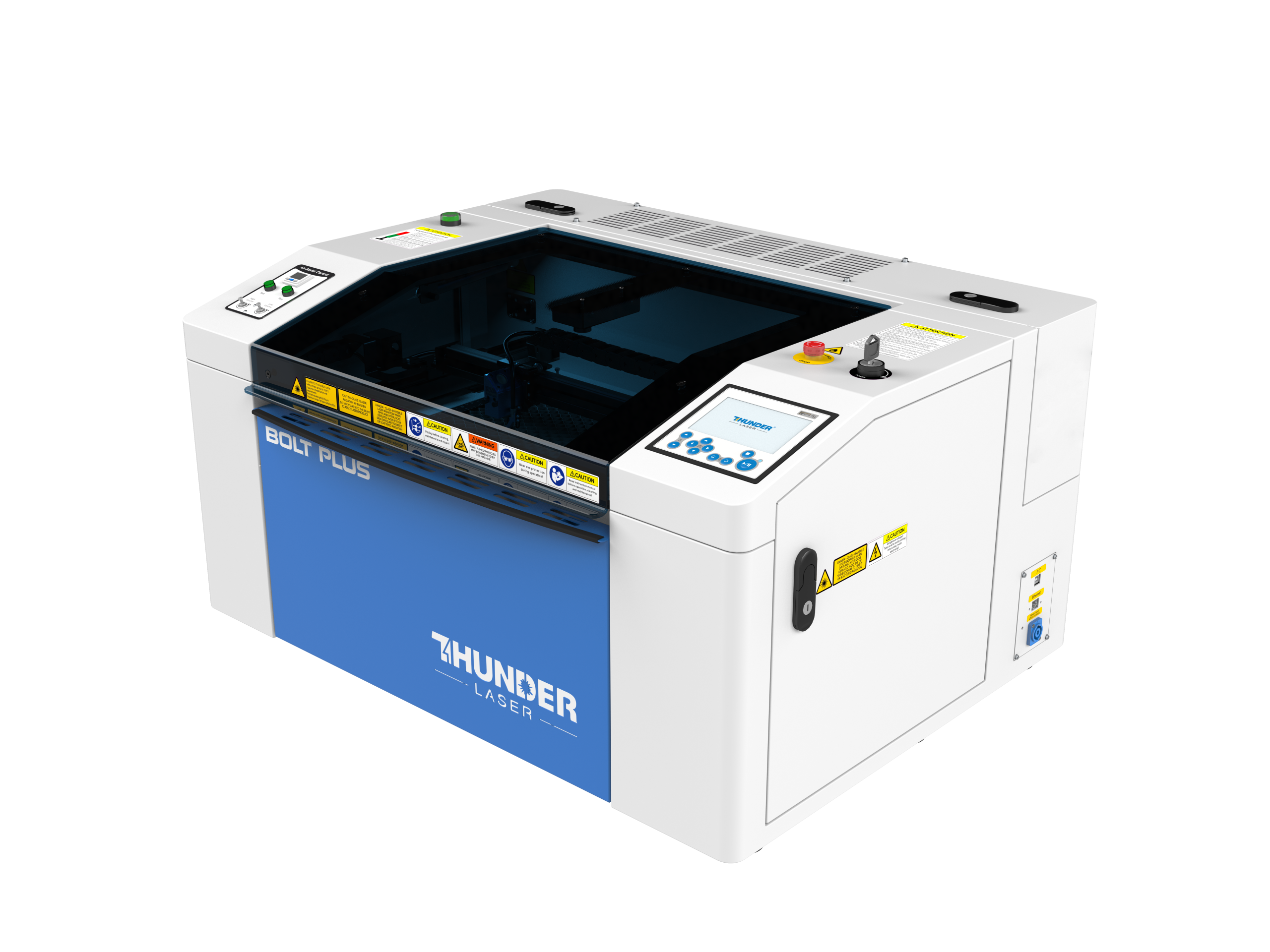

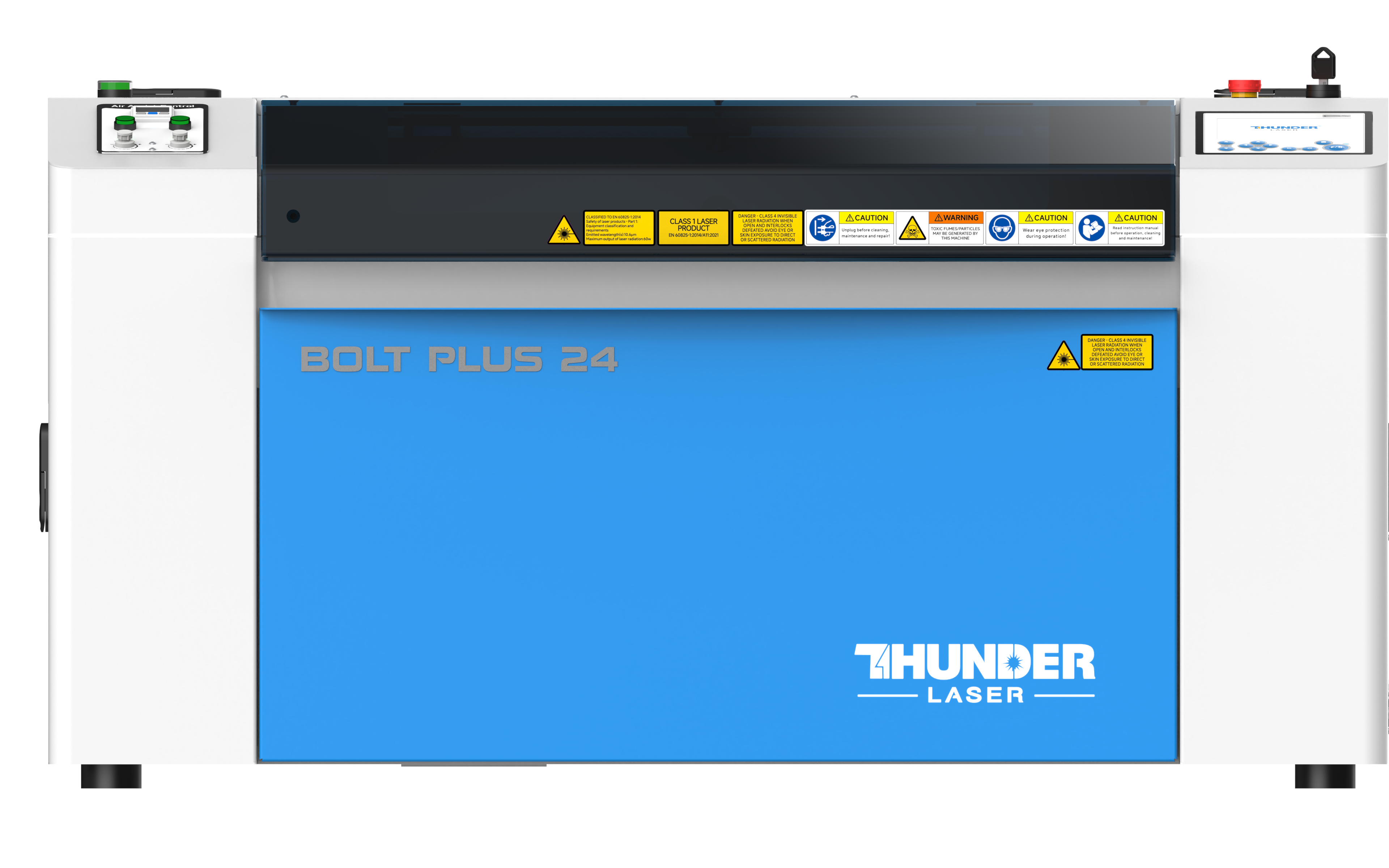

The Bolt Plus 24 brings enhanced capabilities for users who need more working space and faster processing. With an expanded 610 × 407 mm work area, it gives you the flexibility to take on larger projects without compromising on workspace efficiency. Equipped with a durable RF laser tube, it delivers ultra-fast engraving at 1,500 mm/s, 5G acceleration, and exceptional beam quality. The Bolt Plus 24 features auto-focus, a high-resolution camera, Dual Air Assists™, and a fully enclosed metal body, making it intuitive, safe, and reliable for first-time users and creative studios alike.

What's Included?

Product Features

Fast and Precise

Ready for Real Work

Built-In Productivity

Industrial-Grade

UNLOCK SPECTACULAR CREATIVITY WITH LASER

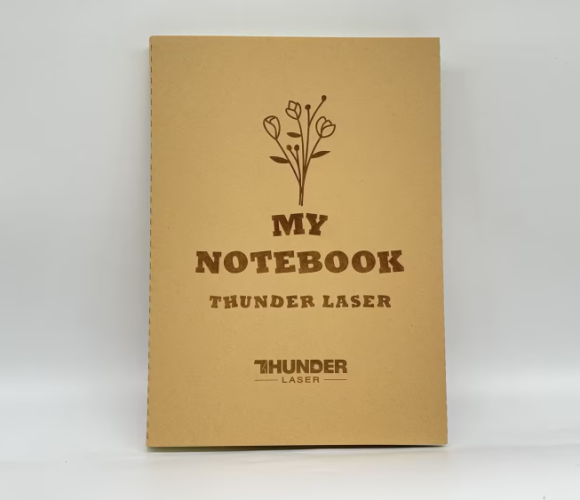

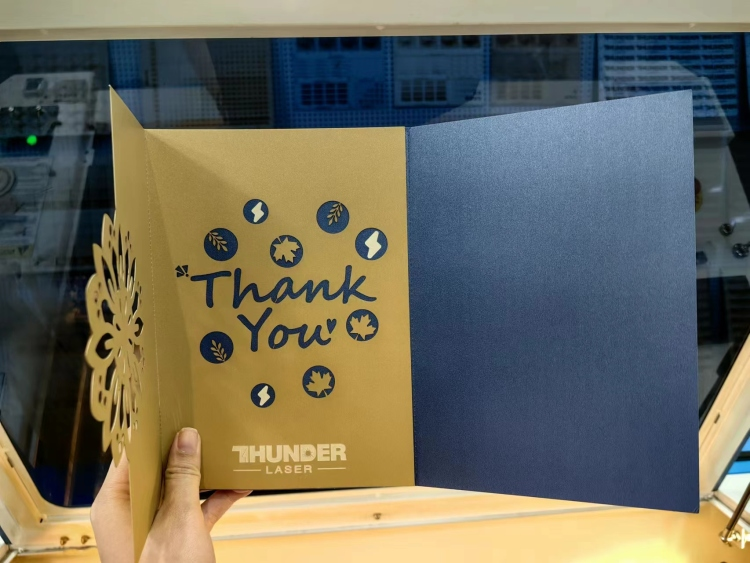

Engraving Kraft Paper

Engraving Wood

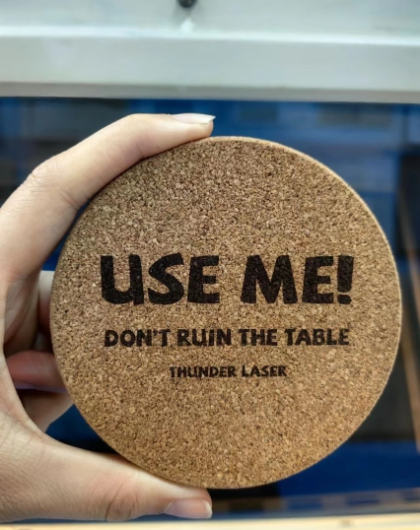

Engraving Cork

Engraving Rubber

Engraving Cowhide

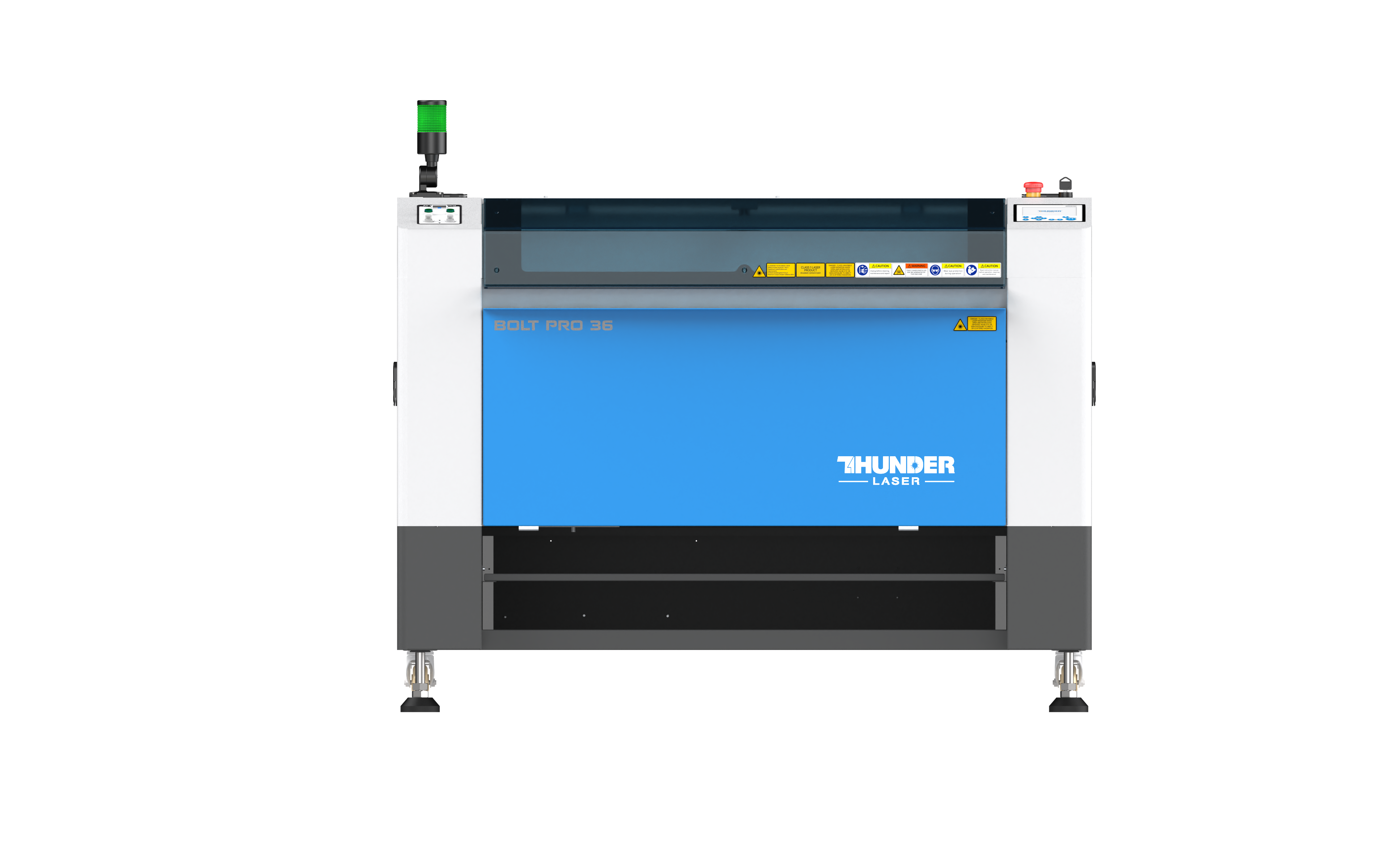

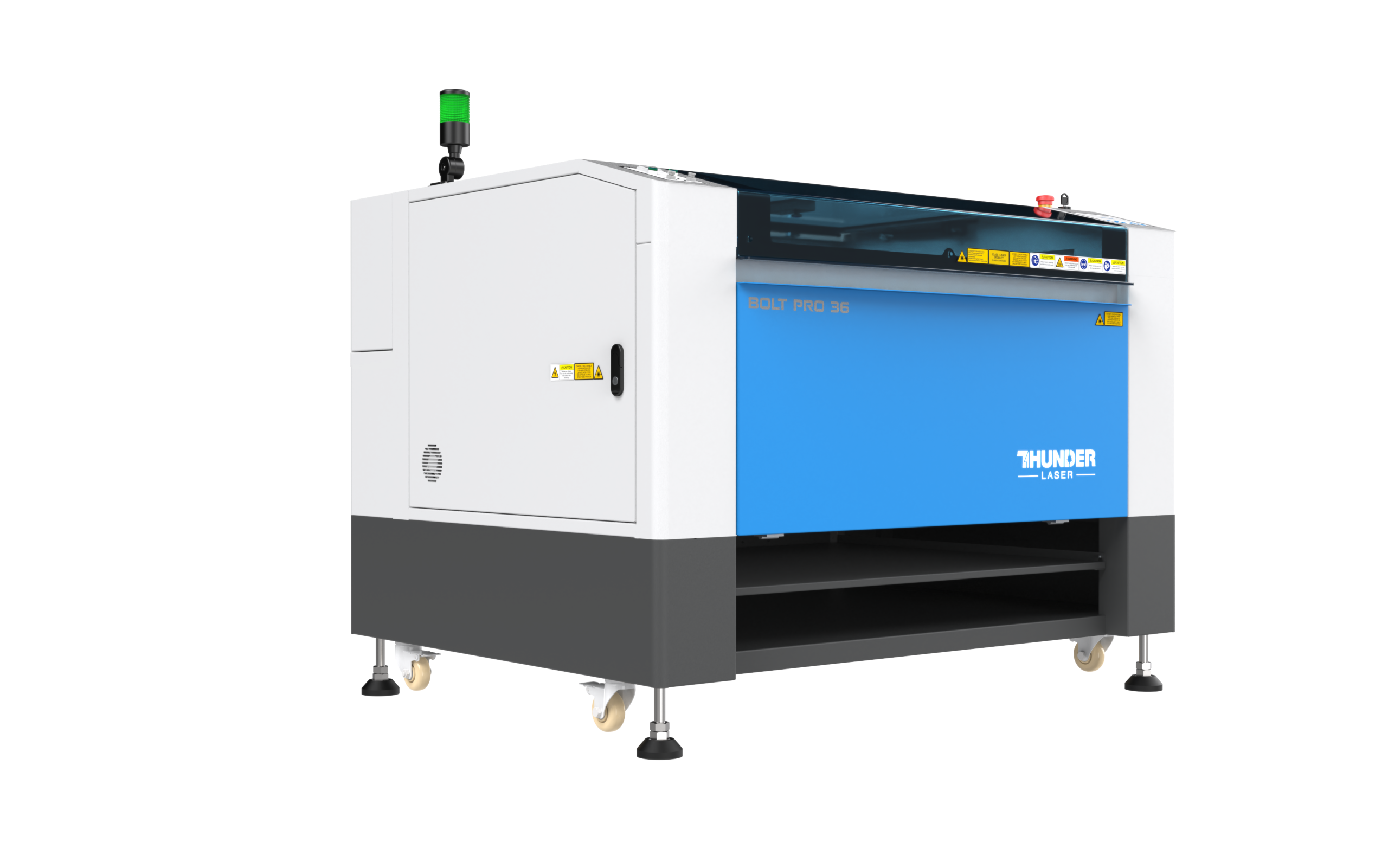

Bolt Pro 36

Bolt Pro 36

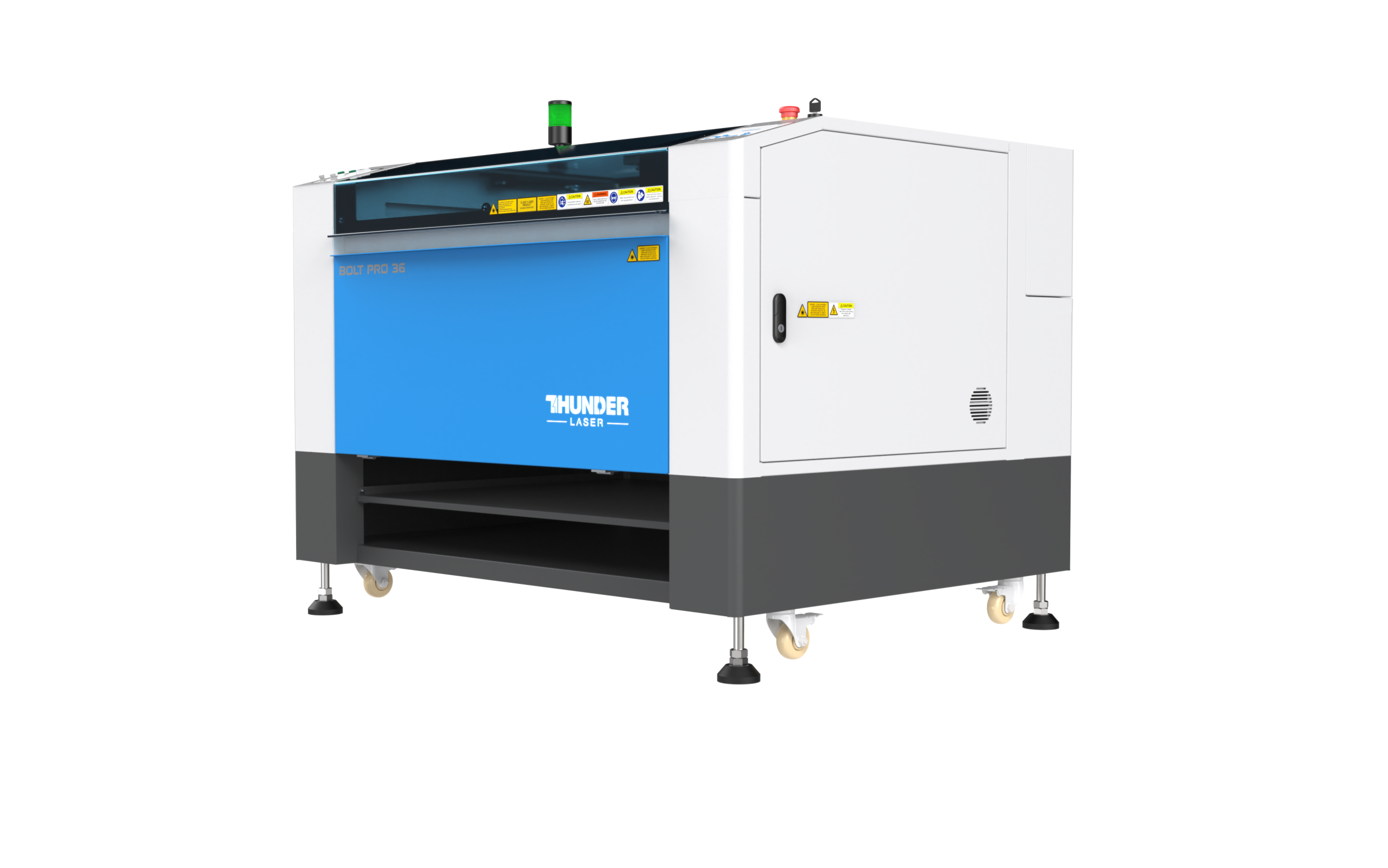

The Bolt Pro 36 is the largest model in the Bolt Series, designed for creators and small businesses who need more workspace without compromising speed or precision. With its extended 915 × 610 mm working area, it accommodates larger projects and higher-volume production. Powered by an RF laser tube and a stable air-cooling system, it delivers engraving speeds up to 2000 mm/s with 5G acceleration, ensuring consistent results even in demanding workflows. The Bolt Pro 36 strikes the perfect balance between compact design and professional-grade performance.

What's Included?

Product Features

Fast and Precise

Ready for Real Work

Built-In Productivity

Industrial-Grade

UNLOCK SPECTACULAR CREATIVITY WITH LASER

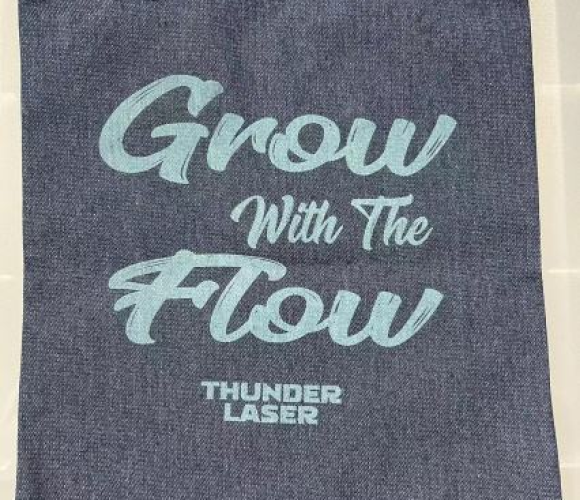

Engraving Denim

Engraving ABS

Engraving Leather

Engraving Wood

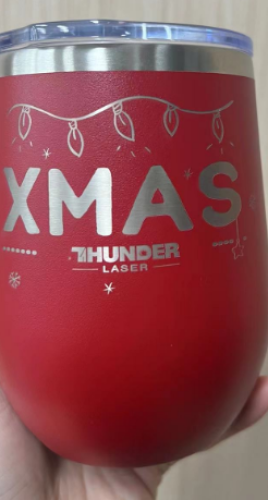

Engraving Coated Metal

What you can do with Thunder Bolt Series?
Materials	Engrave	Cut
Wood	✓	✓
Acrylic	✓	✓
Delrin	✓	✓
Cloth	✓	✓
Leather	✓	✓
Mat Board	✓	✓
Melamine	✓	✓
Paper	✓	✓
Mylar	✓	✓
Pressboard	✓	✓
Rubber	✓	✓
Wood Veneer	✓	✓
Fiberglass	✓	✓
Plastic	✓	✓
Cork	✓	✓
Corian	✓	✓
Twill	✓	✓
Anodized Aluminum	✓	✕
Painted Metals	✓	✕
Tile	✓	✕
Glass	✓	✕
Coated Metals	✓	✕
Ceramics	✓	✕
Marble	✓	✕
Stainless Steel	✕	✕
Brass	✕	✕
Titanium	✕	✕
Bare Metal	✕	✕

Technical Specifications

Take a closer look at what the Bolt series has to offer.

Model	BOLT	BOLT PLUS 24	BOLT PRO 36
Machine Size	941724498mm (37.0" x 28.5" x 19.6")	1125925585mm (44.3" x 36.4" x 23.0")	143011251225mm (56.3* x 44.3"x 48.2")
Working Area	508*305mm (20.00" × 12.01")	610 × 407 mm (24.02" × 16.02")	915*610 mm (36.0" × 24.0")
Working Table	557*357mm (22.00"x 14.00")	715483mm (28.15x 19.02")	1019*685mm (40.12"x 26.97")
Maximum Lifting	110mm / 4.33"	150 mm / 5.91"	205 mm / 8.07"
Z Axis Height	113mm / 4.45"	160 mm / 6.30"	210 mm / 8.26"
Max Part Size	513 * ∞ * 110mm (20.20" x ∞ x 4.33")	655 * ∞ * 150mm (25.79" x ∞ x 5.9")	959 * ∞ * 205mm (37.76" x ∞ x 8.07")
Max Load	10kg / 22.05 lbs	20kg / 44.10 lbs	20kg / 44.10 lbs
Machine Weight	77kg / 169.76 lbs	132kg / 291 lbs	265.5kg / 585.3 lbs
Repeat positioning accuracy	0.01mm	0.01mm	0.01mm
Max. scanning speed	1,500mm/s	2000 mm/s	2000 mm/s
Max. cutting speed	300mm/s	300mm/s	300mm/s
Acceleration	3G, 30,000mm/s²	5G, 50,000mm/s²	5G, 50,000mm/s²
Rotary Diameter	0~90mm	0~90mm	0~90mm
Laser Type	Standard: 30W SPT RF Tube Optional: 60W SPT / 30W Coherent RF Tube	Standard: 60W SPT RF Tube Optional: 30W SPT/Coherent RF Tube	Standard: 80W SPT RF Tube Optional: 30W SPT/Coherent, 55W Coherent, 60W SPT RF Tube
Working Platform	Honeycomb Table	Honeycomb Table	Honeycomb Table
Laser head	Standard: 2.5" Optional: 1.5", 2.0", 4.0"	Standard: 2.5" Optional: 1.5", 2.0", 4.0"	Standard: 2.5" Optional: 1.5", 2.0", 4.0"
Pass-through Door	Front Pass-through Door	Front Pass-through Door	Front Pass-through Door
Rotary	Supported, Rotary Tray Included	Supported, Rotary Tray Included	Supported
Laser head lifetime / hour	10,000+	10,000+	10,000+
Voltage	230V±5% or 110V±10%
Focus Lens	1*20mm 2.5" CO2 Focus Lens
Reflector	3*25mm CO2 Silicon Reflector
Beam Combiner	1*25mm CO2 Beam Combiner
Window Mirror	/	1*20mm CO2 Window Mirror
Expander	1*3x Divergence Angle-Adjustable CO2 Expander
Cooling System	Air Cooling	Air Cooling	Air Cooling
Air assist system	Dual-channel air assist with integrated digital flow meter	Dual-channel air assist with integrated digital flow meter	Dual-channel air assist with integrated digital flow meter
Nozzle	3mm	3mm	3mm
Connections	Ethernet, USB Cable, USB Disk	Ethernet, USB Cable, USB Disk	Ethernet, USB Cable, USB Disk
Memory	1GB (1024MB)	1GB (1024MB)	1GB (1024MB)
Software	LaserMaker, LightBurn, RDWorks Supported	LaserMaker, LightBurn, RDWorks Supported	LaserMaker, LightBurn, RDWorks Supported
Camera	5MP Mounted Camera	5MP Mounted Camera	5MP Mounted Camera
Safety	FDA Class 1, CE

FAQS

What are the main differences between the new Bolt Series and the previous models?

The new Bolt Series has been upgraded with faster engraving speeds (up to 2000 mm/s), higher RF power options (up to 80W), larger working areas, improved Z-axis height, and Standard dual-air assist. We also added a recessed tray design for larger rotary objects and included new accessories such as a conical nozzle.

Which Bolt model should I choose?

Bolt: Compact size, affordable entry-level RF laser engraver, great for hobbyists, schools, and makers.

Bolt Plus 24: Larger working area (610 × 407 mm), faster speed, and 60W RF tube — ideal for small businesses or frequent use.

Bolt Pro 36: Highest power (up to 80W) and largest size in the series — built for production, batch jobs, and professional users.

What materials can the Bolt Series engrave and cut?

The Bolt Series works with a wide range of non-metallic materials, including wood, acrylic, leather, paper, textiles, glass, and rubber. With proper settings, it can also mark coated metals.

Learn more materials that can be processed by Thunder Bolt in our Knowledge Base

What is the benefit of RF tubes compared to glass tubes?

RF tubes provide higher engraving precision, longer lifespan, faster response time, and more stable output compared to traditional glass tubes. This makes the Bolt Series ideal for professional applications.

How does the dual-air assist improve performance?

Dual-air assist separates high-pressure cutting air and low-pressure engraving air. This means cleaner cuts, reduced burn marks, and more efficient material processing.

What’s the advantage of the recessed tray design?

The recessed tray allows the machine to handle larger-diameter rotary objects, such as tumblers and bottles, expanding the range of possible applications.

Do the new models support rotary engraving?

Yes, all Bolt Series machines support rotary attachments, and the recessed tray design makes it easier to work with taller objects.

How easy is it to get started with the Bolt Series?

Every machine comes pre-calibrated, with intuitive software, step-by-step tutorials, and technical support. Most users can start engraving within no more than one hour of setup.

Is there a warranty and after-sales support?

Yes. All Bolt Series machines come with a warranty and access to Thunder Laser’s global support team. Free training resources and community support are also available.
