What you can do with Thunder Bolt Series? | ||
---|---|---|
Materials | Engrave | Cut |
Wood | ✓ | ✓ |
Acrylic | ✓ | ✓ |
Delrin | ✓ | ✓ |
Cloth | ✓ | ✓ |
Leather | ✓ | ✓ |
Mat Board | ✓ | ✓ |
Melamine | ✓ | ✓ |
Paper | ✓ | ✓ |
Mylar | ✓ | ✓ |
Pressboard | ✓ | ✓ |
Rubber | ✓ | ✓ |
Wood Veneer | ✓ | ✓ |
Fiberglass | ✓ | ✓ |
Plastic | ✓ | ✓ |
Cork | ✓ | ✓ |
Corian | ✓ | ✓ |
Twill | ✓ | ✓ |
Anodized Aluminum | ✓ | ✕ |
Painted Metals | ✓ | ✕ |
Tile | ✓ | ✕ |
Glass | ✓ | ✕ |
Coated Metals | ✓ | ✕ |
Ceramics | ✓ | ✕ |
Marble | ✓ | ✕ |
Stainless Steel | * | ✕ |
Brass | * | ✕ |
Titanium | * | ✕ |
Bare Metal | * | ✕ |

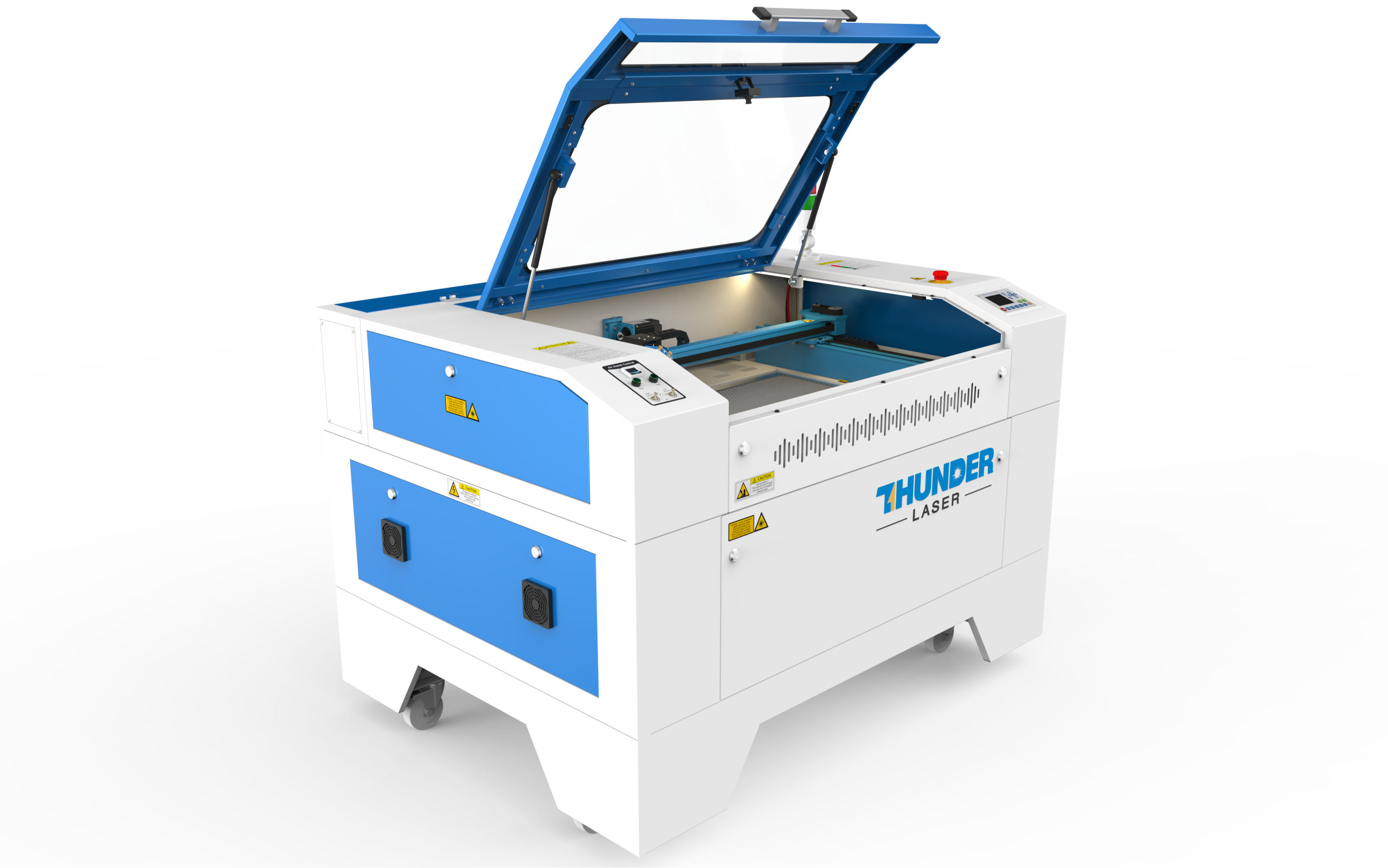

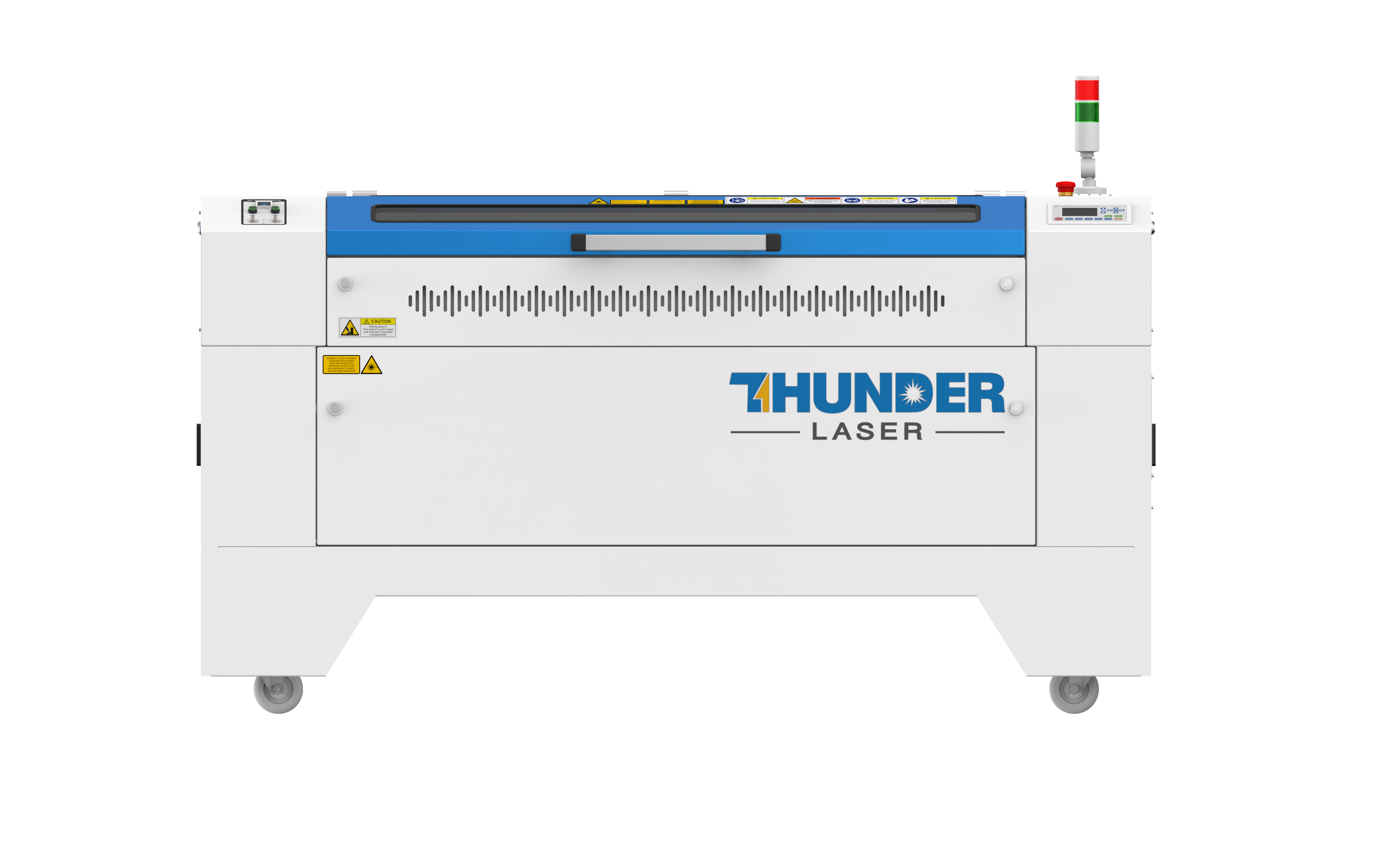

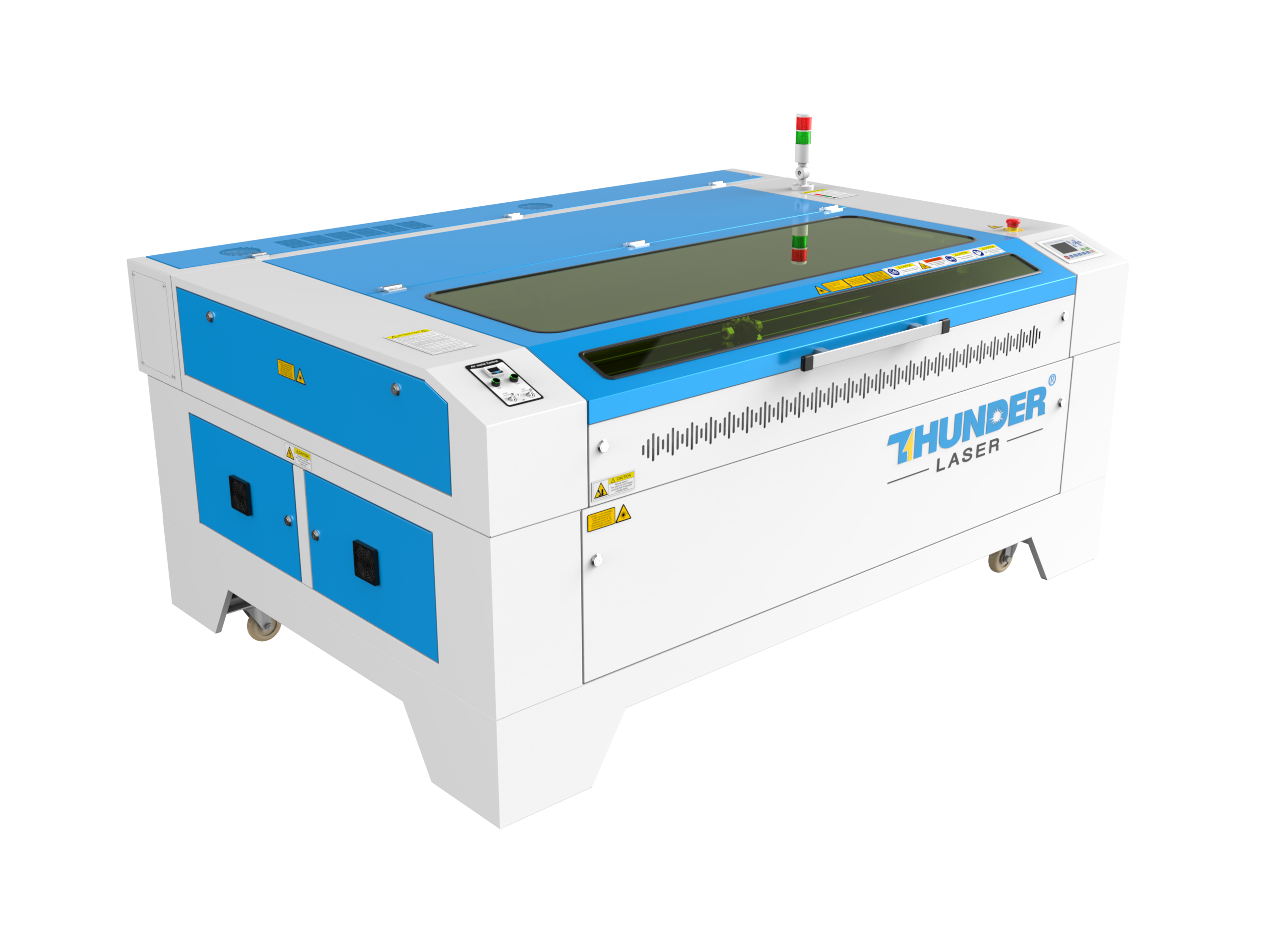

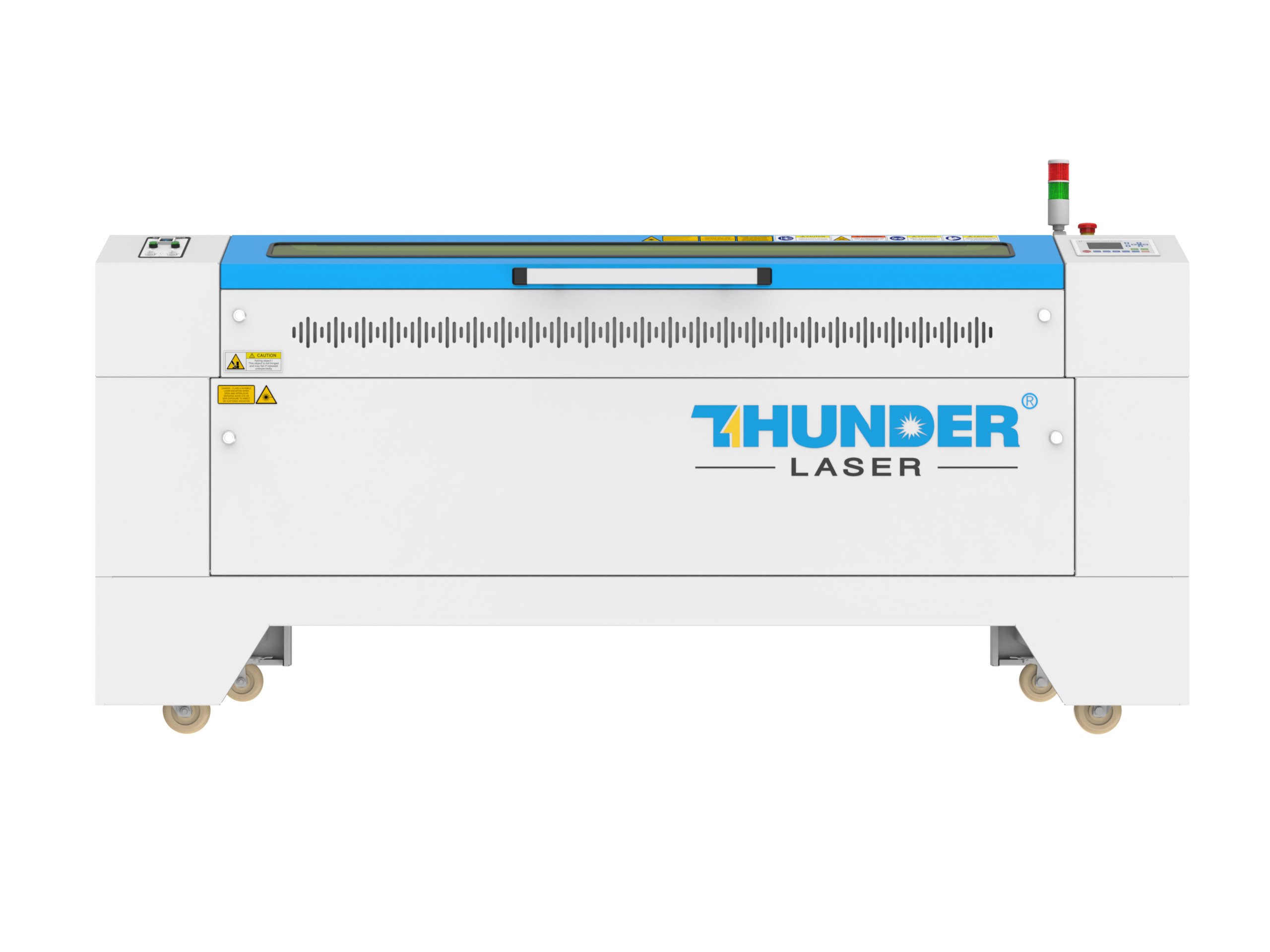

Specification | Nova Plus 24 | Nova Plus 35 | Nova Plus 51 | Nova Plus 63 |
---|---|---|---|---|
Wattage | 60 W RF Metal Tube | 60 W Std / 50–120 W Opt | 60 W Std / 50–120 W Opt | 80 W Std / 50–120 W Opt |
Working Area | 23.6″×15.7″ (600×400 mm) |
35.4″×23.6″ (900×600 mm) |
51.2″×35.4″ (1300×900 mm) |
62.9″×39.3″ (1600×1000 mm) |
Max Part Size (Pass-through) |
Closed: 24.2″×18.5″×6.1″ Open: 24.0″×∞×0.8″ |
Closed: 36.7″×25.6″×8.9″ Open: 37.8″×∞×0.8″ |
Closed: 52.4″×37.6″×8.9″ Open: 53.5″×∞×0.8″ |
Closed: 64.2″×41.5″×8.9″ Open: 65.4″×∞×0.8″ |
Machine Footprint | 44.1″×34.2″×26.8″ (1120×868×682 mm) |
59.8″×47.4″×43.9″ (1520×1205×1115 mm) |
75.6″×59.1″×43.9″ (1920×1502×1115 mm) |
87.4″×61.1″×43.9″ (2220×1552×1115 mm) |
Engraving Speed | 1,200 mm/s | |||
Acceleration | 2.5 G | |||
Memory | 1 GB | |||
Laser Source | CO₂ RF Metal Tube – 10,000 hr lifespan | |||
Electrical | 110 V 60 Hz, 20 A circuit | |||
Air Assist | Dual air assist + air-volume meter | |||
Software | LightBurn (2 PCs) – Win/Mac/Linux | |||
Red Dot Pointer | Yes – dry-run & positioning | |||
Camera | Over-head camera standard | |||
Resolution | 1,000 dpi (2.5″) / 2,000 dpi (1.5″) | |||
Safety | Open-cover, no-air, heat alarm | |||
Auto Focus | Cone-head touch system | |||
Cooling | CW-5000 Water Chiller | CW-5000 Water Chiller (Air-cooled option 50-60 W) |
CW-5000 (50-80 W) CW-5200 (100-120 W) |
CW-5000 (50-80 W) CW-5200 (100-120 W) |
Motorized Table | Removable honeycomb & knife bed | |||
Laser Heads | 2.5″ standard; 1.5″, 2.0″, 4.0″ optional | |||
TL-Timer™ | Smart relay for air & exhaust | |||
Warning Light | Red = working / Green = safe | |||
Warranty | 2-yr machine / 1-yr RF tube |
The key difference between the Nova Plus and the Nova is the upgrade from a CO₂ glass tube to a CO₂ RF tube, delivering higher engraving precision and enhanced cutting power. This also increases speed from 1000 mm/s to 1200 mm/s. Thanks to the RF tube’s advanced capabilities, air cooling is sufficient, eliminating the need for an additional water chiller. You can choose by your need.
|
Nova Plus Series |
Nova Series |
Laser Tube |
RF Metal Tube (2000DPI 10,000 hour lifespan) |
Glass Tube (500DPI 2000-4000 hour lifespan) |
Acceleration |
2.5G |
1G |
Speed |
1200mm/s |
1000mm/s |
Auto focus |
Easier focusing, suitable for transparent acrylic, with auto-focusing capability anywhere. |
Not suitable for transparent acrylic, with a fixed focusing area. |
Camera |
Standard |
Optional |
The Nova Plus Series currently offers a maximum power of 120W, equipped with a high-frequency RF CO₂ laser tube. Compared to traditional glass tubes, RF (radio frequency) tubes deliver more stable power, longer lifespan, and superior engraving precision—especially for fine details and high-speed production. With 120W of cutting power and the reliability of an RF source, the Nova Plus is an excellent choice for businesses that need clean results, long-term durability, and faster job turnaround times across a wide range of materials.
Absolutely. The Nova Plus is built for continuous, high-volume work. The RF laser tube maintains stable output even over long jobs, while the machine’s robust frame and motion control system ensure precise, repeatable performance. It’s ideal for businesses producing signage, packaging, custom products, and more.
Yes—the Nova Plus is absolutely worth the investment, especially for users who need a laser machine built for high-precision, high-volume work.
Here’s why many professionals choose the Nova Plus:
✅ Industrial-Grade Performance
The Nova Plus is equipped with a high-frequency RF laser tube, offering faster and more precise engraving, and a longer lifespan than traditional glass tubes. It’s built for consistent output, whether you’re doing intricate engraving or full-depth cutting.
✅ Lower Maintenance, Higher Uptime
RF systems are more stable and require less frequent alignment or tube replacement. That means less downtime and fewer interruptions to your workflow.
✅ Ideal for Growth
Whether you’re scaling your product line, fulfilling custom orders, or running batch production, the Nova Plus gives you the speed, accuracy, and consistency you need to grow your business with confidence.
✅ Safety + Workflow Efficiency
With features like full enclosure, dual-camera system, autofocus, touchscreen controls, and offline-capable software, the Nova Plus is not only powerful—but also safe and easy to operate, even in shared workspaces or teaching environments.
In short: If you’re looking for a laser system that combines industrial-grade power with user-friendly design, the Nova Plus offers outstanding long-term value. It’s a smart upgrade for makers, schools, and manufacturers who care about both quality and efficiency.
